Raymarine Type 1 linear drive — service manual exploded assembly

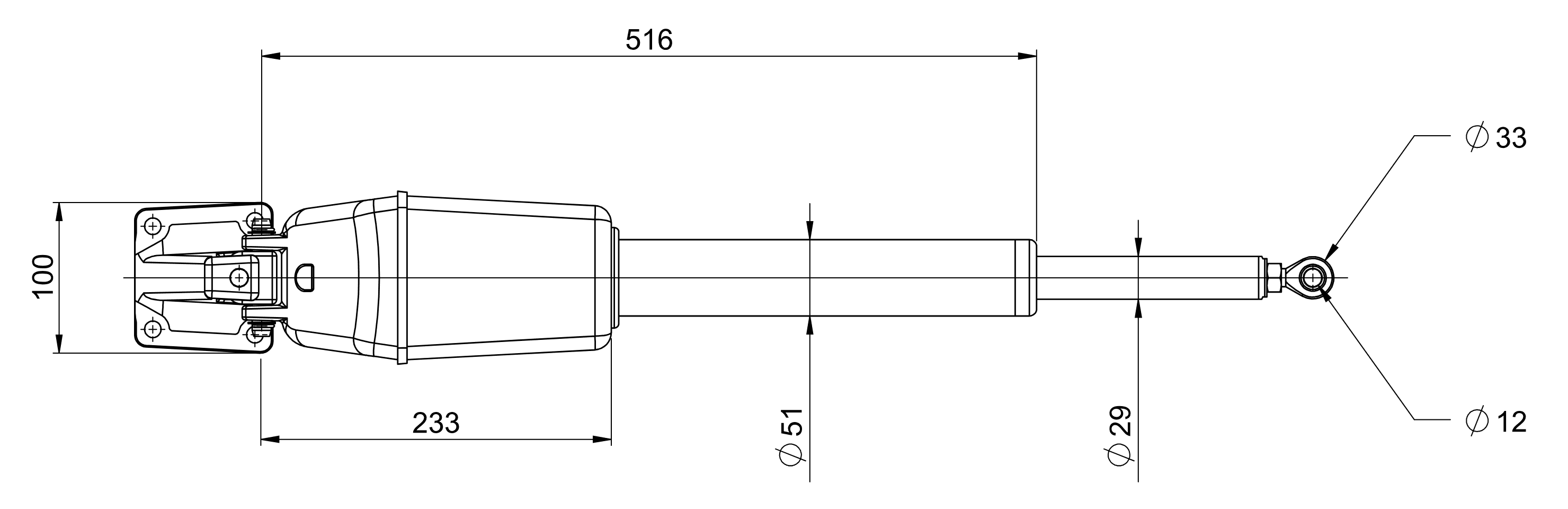

Raymarine drawing DR_T1_LINEAR — TYPE1 12V MECH LINEAR DRIVE M81130, scale 1:4, dimensions in mm (© 2011 Raymarine Ltd)Scroll the drawing sideways to reach every hotspot.

Hotspots sit on the service-manual callouts for HME-stocked spares. Use the left and right arrow keys to step through them. Open the full drawing sheet for the complete parts list without pins in the way.

1

Mounting foot

Mounting Foot

mounting foot — fixed mounting end secured to vessel structure

SKU
Not listed individually
Manual item
Mounting foot
Price
On enquiry

Not found as a standalone HME product page

Not stocked as a standalone line on the HME shop — often supplied as part of a kit or made to suit the vessel. Get in touch and we'll source it.
