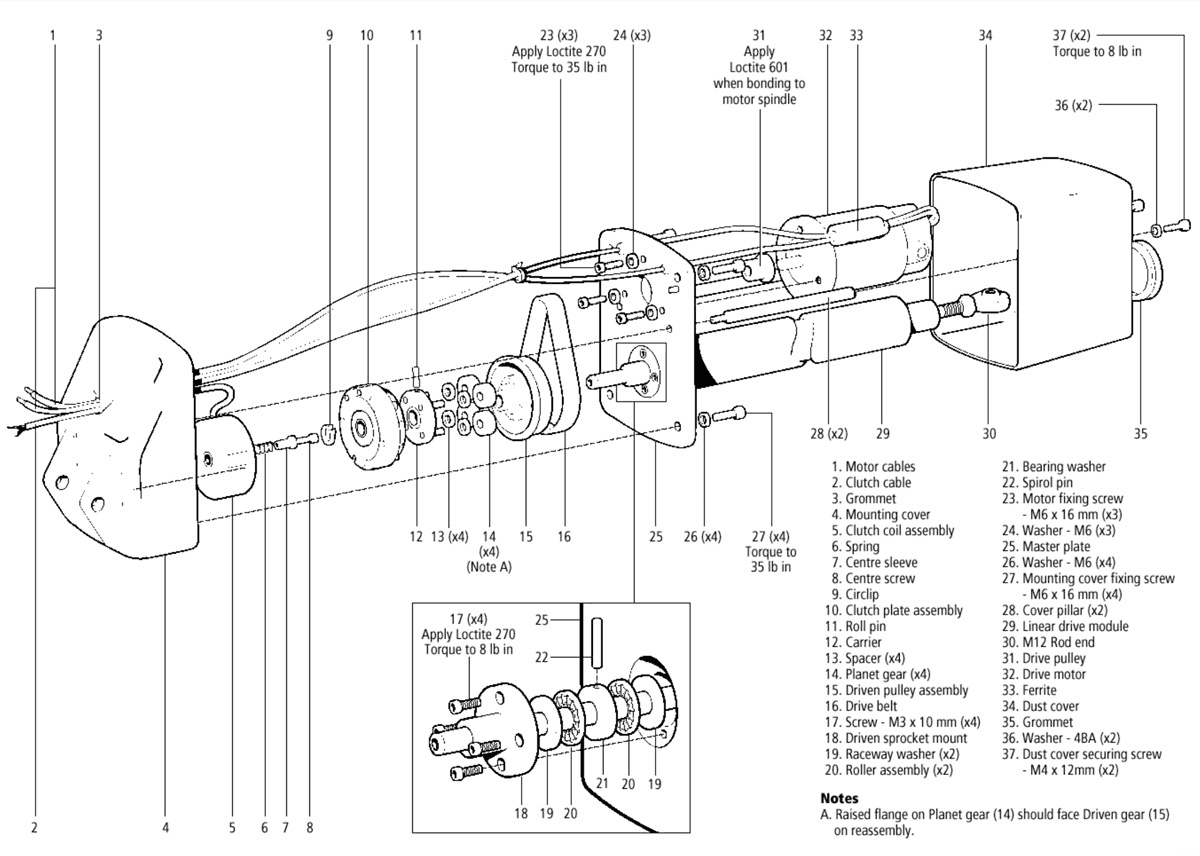

Service manual exploded view — Type 1 / Type 2 linear drive general assembly (parts 1–37). Click numbered hotspots for HME spares.Scroll the drawing sideways to reach every hotspot.
Hotspots sit on the service-manual callouts for HME-stocked spares. Use the left and right arrow keys to step through them. Open the full drawing sheet for the complete parts list without pins in the way.
Internal assembly — see exploded callout
clutch — electromagnetic clutch coil around the clutch assembly near the gearbox
HME product handle retains typo 'asssembly' (three s)
Buy on hudsonmarine.co.ukEvery line on this page was read off a live HME product page — nothing is inferred. Prices are the snapshot taken when the catalogue was last read.
| Part | SKU | Price | Link |
|---|---|---|---|
| Type 1 Linear Drive Motor | N001 | £392.06 | View |
| Linear Drive Belt | N006 | £50.15 | View |
| Clutch Coil Assembly | N007 | £241.61 | View |
| Clutch Plate Assembly | R70926 | £168.54 | View |
| Heavy Duty Gear Kit | N021 | £223.38 | View |
| Short Stroke Linear Drive ModuleType 2 | N004 | £1,323.53 | View |
| Long Stroke Linear Drive ModuleType 2 | N005 | £1,429.42 | View |
| Type 1 12V Short Shaft Linear Drive (complete) | M81130 | £1,910.15 | View |
| Linear Drive Mounting Foot | R18144 | £214.26 | View |
| M12 Rod End (Rose Joint) | K067 | £109.42 | View |
About the N004 / N005 stroke modules
Where the data comes from
Autohelm/Raymarine linear drive service manual exploded assembly + HME catalogue
Diagram: service-manual general assembly (parts 1–37). Hotspots cover the HME-stocked spares (motor, belt, clutch, gear kit, drive module, rod end) plus the complete M81130. Hardware and non-stocked items appear in the manual legend but may not have a shop link.
Full callout list from the exploded assembly. Rows with an HME stocked spare are highlighted.
